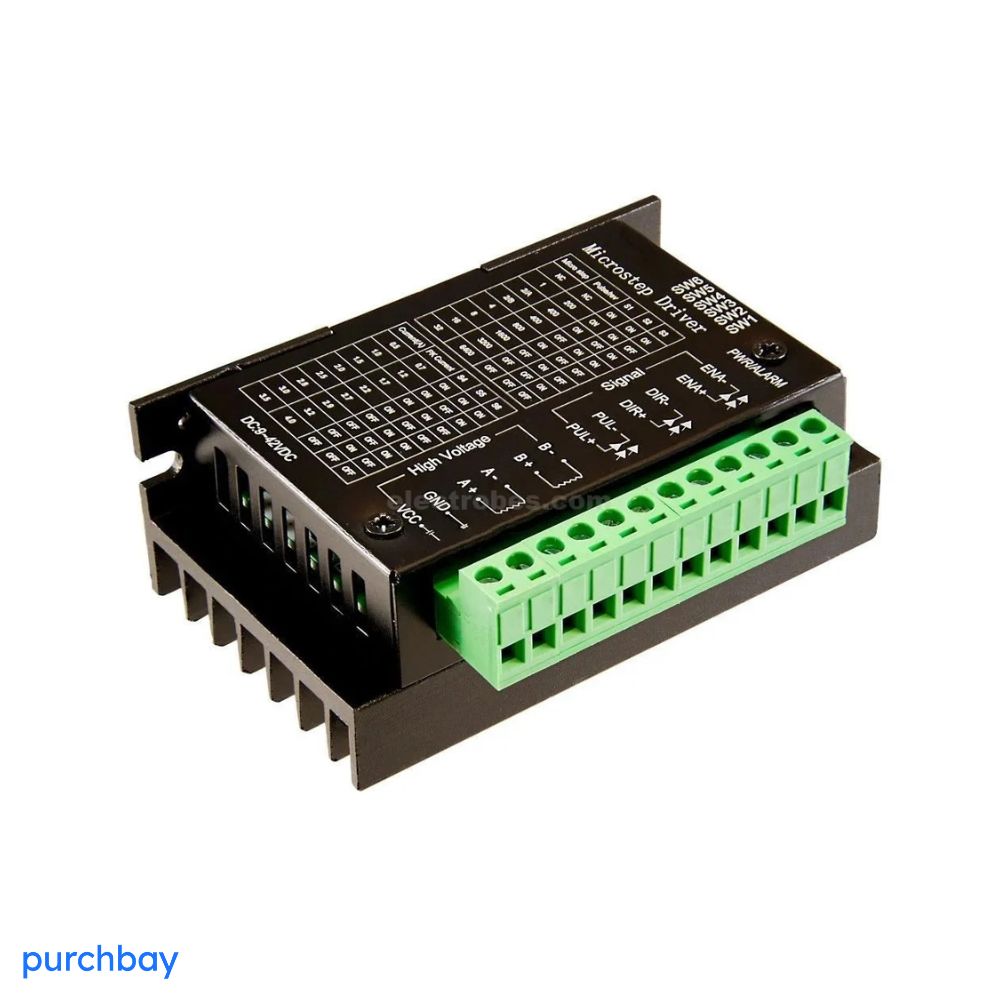

TB6600 Stepper Motor Driver
The TB6600 Stepper Motor Driver is a powerful driver module designed for controlling stepper motors in CNC machines, 3D printers, robotics, and industrial automation systems.
The driver is based on technology developed by Toshiba and provides stable motor control with adjustable current and microstepping.
It supports multiple stepper motors including NEMA17 and NEMA23, making it suitable for both hobby projects and industrial applications.
Key Features
✔ High current motor driver
✔ Supports up to 4A output current
✔ Microstepping control
✔ Overcurrent protection
✔ Overheat protection
✔ Easy connection with Arduino and CNC controllers
✔ Stable motor control
Technical Specifications
Driver Model: TB6600
Maximum Output Current: 4A
Input Voltage: 9V – 42V DC
Microstepping: Multiple selectable levels
Compatible Motors: NEMA17 / NEMA23 stepper motors
Control Interface: Pulse / Direction
Applications
TB6600 driver is widely used in:
• CNC machines
• Laser engraving machines
• 3D printers
• Robotics systems
• Automation machines
• Motor control projects
Why Use TB6600 Driver?
TB6600 drivers are popular because they provide:
✔ High motor control accuracy
✔ Strong current capacity
✔ Smooth motor movement
✔ Reliable performance for CNC machines
They are widely used in DIY CNC machines and industrial motor control systems.
Package Includes
1 × TB6600 Stepper Motor Driver Module
